TL-4 Three Cable

Full-scale vehicle crash/impact testing has been completed to evaluate the safety performance of our TL-4 three cable longitudinal cable barrier and resulted in acceptance from the FHWA for the Gibraltar TL-4 for use as a highway safety barrier. The appraisal factors for evaluating crash test performance are: structural adequacy, occupant risk and after-collision vehicle trajectory. A test level is defined by impact conditions (speed, approach angle and vehicle type).

Through design and testing Gibraltar has received acceptance from the FHWA for various installation options and system features for the TL-4 which allow Gibraltar to provide the customer with the most cost effective solution for their specific need.

TL-4 Three Cable Order Forms See the testing details for both the NCHRP 350 and EN 1317 specifications below.

NCHRP 350
EN 1317

The Gibraltar TL-4 Cable Barrier consisting of a 3-strand, high tension cable barrier provides a cost effective solution designed to contain and redirect errant vehicles from hazards.

Special Features: Gibraltar Test Level 4

FHWA Acceptance
Tested NCHRP Report 350
4:1 Slope Application
Up to 30 ft. Post Spacing
Driven or Socketed Posts
W-Beam Transition (Option)
Driven Anchor Option

The TL-4 is designed to contain vehicle types from smaller cars up to 18,000 lb cargo trucks.

The Gibraltar EN 1317 TL-4 three cable barrier consists of a cost-effective solution designed to contain and redirect errant vehicles from hazards.

Special Features: EN 1317 TL-4 3 Cable

120 km/hr High Speed Crash Tested
TRL Acceptance
Post Spacing from 1.8M to 5.4M
W5 Rated Working Width
NCHRP 350 Approved Terminal Anchorage

The H1-W5 is designed to contain vehicle types from smaller cars up to 10,000 kg cargo trucks.

Full scale vehicle crash/impact testing has been completed to evaluate the safety performance of our EN 1317 TL-4 longitudinal cable barrier. All testing procedures were conducted as prescribed by EN 1317 and resulted in acceptance from TRL for the Gibraltar EN 1317 TL-4 for use as a highway safety barrier. Through design and testing Gibraltar has received acceptance from TRL for various installation options and system features for the EN 1317 TL-4 cable barrier. These features allow Gibraltar to provide the customer with the most cost effective solution for their specific need.

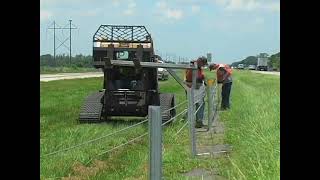

Gibraltar Cable Barrier Systems Maintenance & Repair Video

Gibraltar Cable Barrier Systems Cargo Truck TL4 Test

Gibraltar Cable Barrier Systems Upslope Car TL4 Test
